Single-row Four Point Contact Ball Slewing Bearing with flange (Non- gear teeth type)

WANT TO PURCHASE THIS ITEM NOW?

We will quote you immediately with free sample and shortest delivery.

Send Inquiry

Hot tags: China single-row four point contact ball slewing bearing with flange (non- gear teeth type) suppliers, single-row four point contact ball slewing bearing with flange (non- gear teeth type) factory, single-row four point contact ball slewing bearing with flange (non- gear teeth type) price

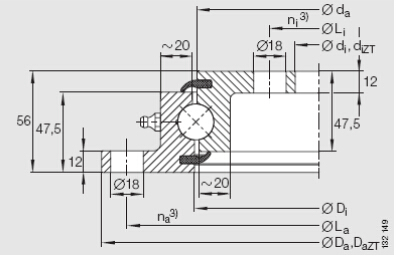

Description And Technical diameters

select	Inquiry	Designations	Boundary Dimension （mm）			Bolt Hole Diameter （mm）				Weight
select	Inquiry	Designations	Da	Di	H	La	Li	na3)	ni3)	（Kg）
		SD.505.20.00.C bearing	518	304	56	490	332	8	12	23
		SD.650.20.00.C bearing	648	434	56	620	462	10	14	34
		SD.750.20.00.C bearing	748	534	56	720	562	12	16	40
		SD.850.20.00.C bearing	848	634	56	820	662	12	16	46
		SD.950.20.00.C bearing	948	734	56	920	762	14	18	52
		SD.1050.20.00.C bearing	1048	834	56	1020	862	16	20	58
		SD.1200.20.00.C bearing	1198	984	56	1170	1012	16	20	67
